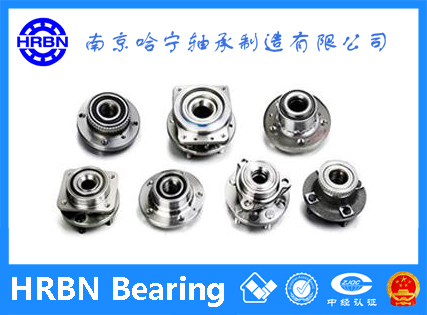

| DACF1112A第二代輪轂單元 | |
| 品 牌 | HRBN哈寧軸承廠 |
| 型 號 | DACF1112A |
| 分 類 | 汽車軸承 |
| 產 地 | 南京哈寧 |
| 郵 件 | 請 聯 系 Email:hrbn@vip.qq.com |
| 電 話 | +86-25-52217447 86629730 |
| 聯 系 人 | 劉長嶺 13801591302 （手機微信支付寶同號） |
Bearing No. | Dimension(mm) | Bolt Size | Outer Ring Flange | ||||||||||||
d | F | B | T | E | M | G | K | H | I | J | Bolt Hole | Q`ty | Shape of Flange | ||
DACF1035B DACF1029 DACF1082C | 25 25 27 | 133 133 148 | 43 43 55 | 73.4 73.4 73 | 60 60 66 | 54.25 54.3 52 | 108 100 114.3 | 71 71 64 | 19.4 19.4 15.5 | 54 54 57.5 | 12.25 11 9 | M12*1.5 - - | 14.22 M12*1.5 12.5 | 5 4 4 | A A C |
DACF1076D DACF1112A DACF1050A DACF1050B | 28 28 28 28 | - 139 140 140.8 | 42 38 48 50.5 | - 64.5 70.5 71 | - 67 67 56 | 61 58 59 47.8 | 97 114.3 114.3 100 | 66.2 70 63 66.6 | - 14 14 18.9 | 51.8 50.5 50.5 52.1 | 7.5 9 9 4.5 | - - M12*1.5 M12*1.5 | 10.5 14 14 14 | 4 4 4 4 | C A A A |
DACF1072B-1 DACF1083CR DACF1041C | 30 30 30 | - 117 122 | 42 37 47 | - 61.3 59.5 | - 58 54 | 63 52 48 | 99 98 100 | 68.2 71.8 68 | - 17 13.5 | 51.8 44.3 56 | 7.5 10 8 | - M12*1.5 M12*1.5 | 10.5 - 12.56 | 4 4 4 | C A A |
DACF1049A DACF1038A DACF1102A | 30 30 30 | 126 131 136 | 59 43 41 | 79 71.3 66 | 56 65 56 | 50.5 59 51 | 100 108 100 | 65.5 76 68.5 | 14.5 19 11.5 | 62.5 21 54.5 | 10 13.5 8 | M12*1.5 - - | 14 M12*1.5 12.1 | 5 4 4 | A A A |
DACF1015 DACF1086 DACF1087A | 30 30 30 | 136 140 125 | 40 50 50 | 66 70.5 70.5 | 56 67 56 | 51 59 50 | 100 114.3 100 | 68.5 68.9 68.9 | 11.5 14 14 | 54.5 56.5 56.5 | 8 9 10 | M12*1.5 M12*1.5 M12*1.5 | 12.1 14 14 | 4 4 4 | A A A |
DACF1065A DACF1022 DACF1091A | 30 30 30 | 152 - - | 41 42 50 | 67.5 - - | 64 - 66 | 58 63 58.3 | 114.3 99.90 99 | 67 72 68 | 11.5 - 10 | 55.5 58.5 44 | 9 7.5 10 | M12*1.5 - - | 12.1 10.5 M12*1.5 | 4 4 4 | B C C |
DACF1097D DACF1005C DACF1034C | 30 31 33 | - 120 140 | 42 40 47 | - 61 71.2 | - 57 67 | 63 50.5 59 | 100 114.3 114.3 | 73.6 73.8 77 | - 19 14 | 51.8 42 54.7 | 7.5 12 9 | - - M12*1.5 | 10.5 M12*1.5 14 | 4 4 5 | C A A |
DACF1081C DACF1036A DACF1031B | 34 34 34.5 | 139 139.5 139 | 42 42 52 | 64.5 70 65.5 | 67 64 63.26 | 58 58 58 | 114.3 107 95 | 74 75 86 | 14 15 13.5 | 50.5 55 52 | 9 9 10 | M12*1.5 M12*1.5 M12*1.5 | 14 12.1 13.1 | 4 4 5 | A A A |
DACF1023D DACF1082L DACF1063A | 35 35 36 | 137 137 140 | 45 45 50 | 69.5 74 71 | 65 65 67 | 53.3 57 59 | 108 110 114.3 | 81 81 79 | 20.5 25 14 | 49 49 57 | 12 12 11 | M12*1.5 - M12*1.5 | 13.1 M12*1.5 14 | 5 5 5 | A A A |
DACF1033K DACF1033K-1 DACF1033K-2 DACF1074CR DACF1092A | 37 37 37 38 40 | 139 139 139 146.5 - | 45 45 45 52 53 | 64 64 64 77 43 | 72.5 72.5 72.5 70 84 | 66 66 66 64 - | 120 120 120 114.3 106 | 84 80 80 76.8 84 | 19 19 19 15 16.4 | 45 45 45 62 26.5 | 11 11 11 9 10 | - - - M12*1.5 - | M12*1.5 M12*1.5 M12*1.5 12.1 M12*1.5 | 5 5 5 5 5 | A A A A C |
